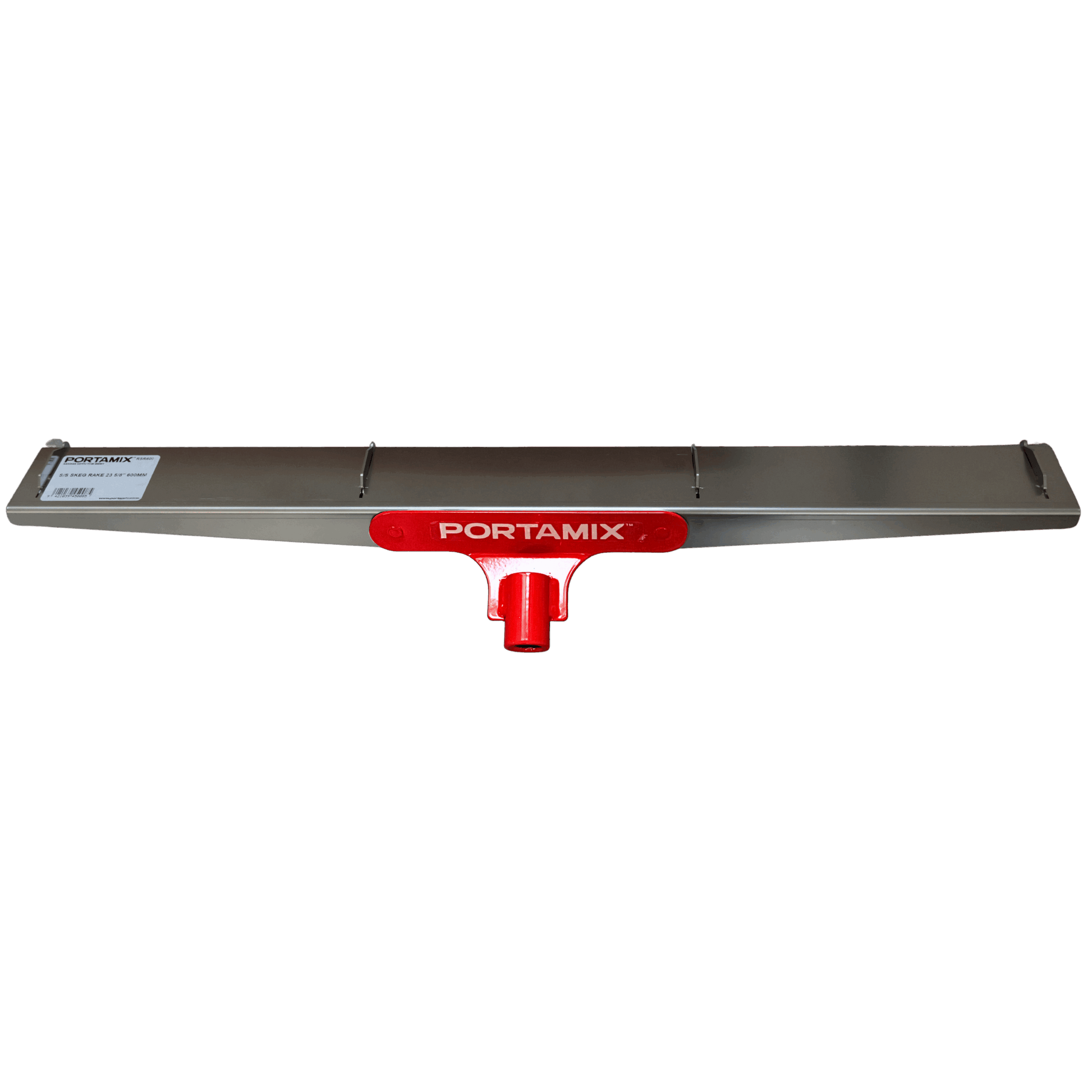

Portamix Quad-Skid Gauge Rake Replacement Skids

The Quad-Skid Gauge Rake is purpose-built for installers who need rock-solid depth control on medium-build self-smoothing systems. Its welded 304-stainless frame resists corrosion and flex while four pre-set Skid Gauge sockets—two fore and two aft—keep the bar perfectly parallel to the slab. Because each Skid Gauge presents a flat wear face instead of a pin, it lasts longer and glides more smoothly over fresh compound, reducing surface waves and material waste.

Match any specification by snapping in the appropriate Skid Gauge set (available in 1/8” (3mm) 3/16” (4mm) 1/4” (6mm) 5/16” (8mm) 3/8” (10mm)). Swap sets in seconds—no threads to clog or cams to adjust—and clean-up is as easy as rinsing stainless steel.

Key Features:

• Quad-Skid Design Four Skid Gauges keep the blade level across 24 in. (600 mm) for uniform depth.
• Interchangeable Skid Gauge Sets Five sizes let you pour ⅛ – ⅜ in. (3 – 10 mm) without buying multiple rakes.
• Long-Wear Skid Geometry Flat faces wear slower than pins, lowering consumable cost.
• All-Stainless Construction Corrosion-proof, easy to decontaminate between epoxy, urethane or cementitious mixes.
• Universal Pole Socket  Fits most U.S. snap-lock or threaded handles for ergonomic reach.

Typical applications

• Self-levelling cementitious underlayments and smoothing screeds (⅛ – ⅜ in. / 3 – 10 mm)

• Polymer-modified toppings for refurbishment overlays

• Epoxy or polyurethane industrial flooring systems requiring precise build control
