Portamix Twin-Glide Gauge Rake 24"

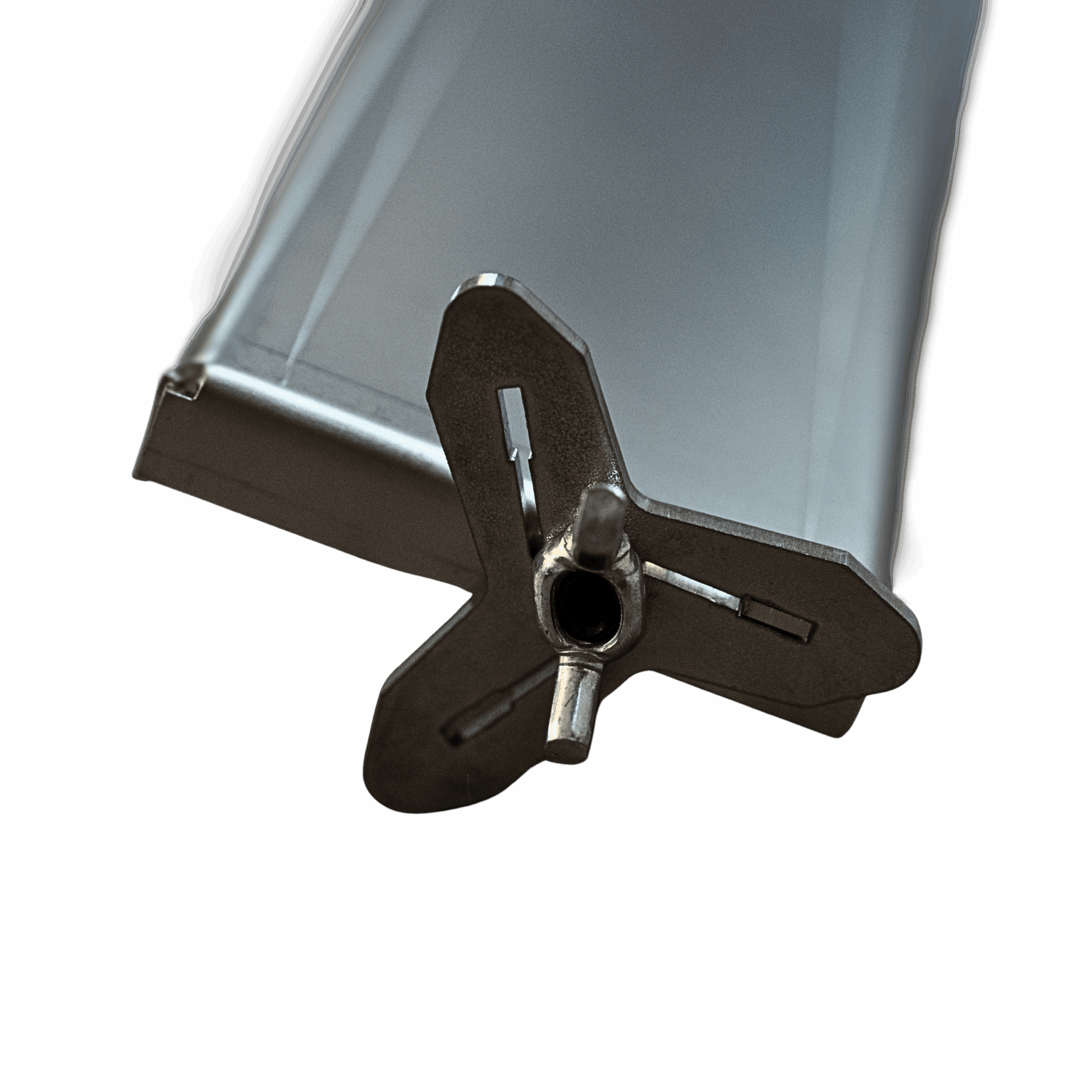

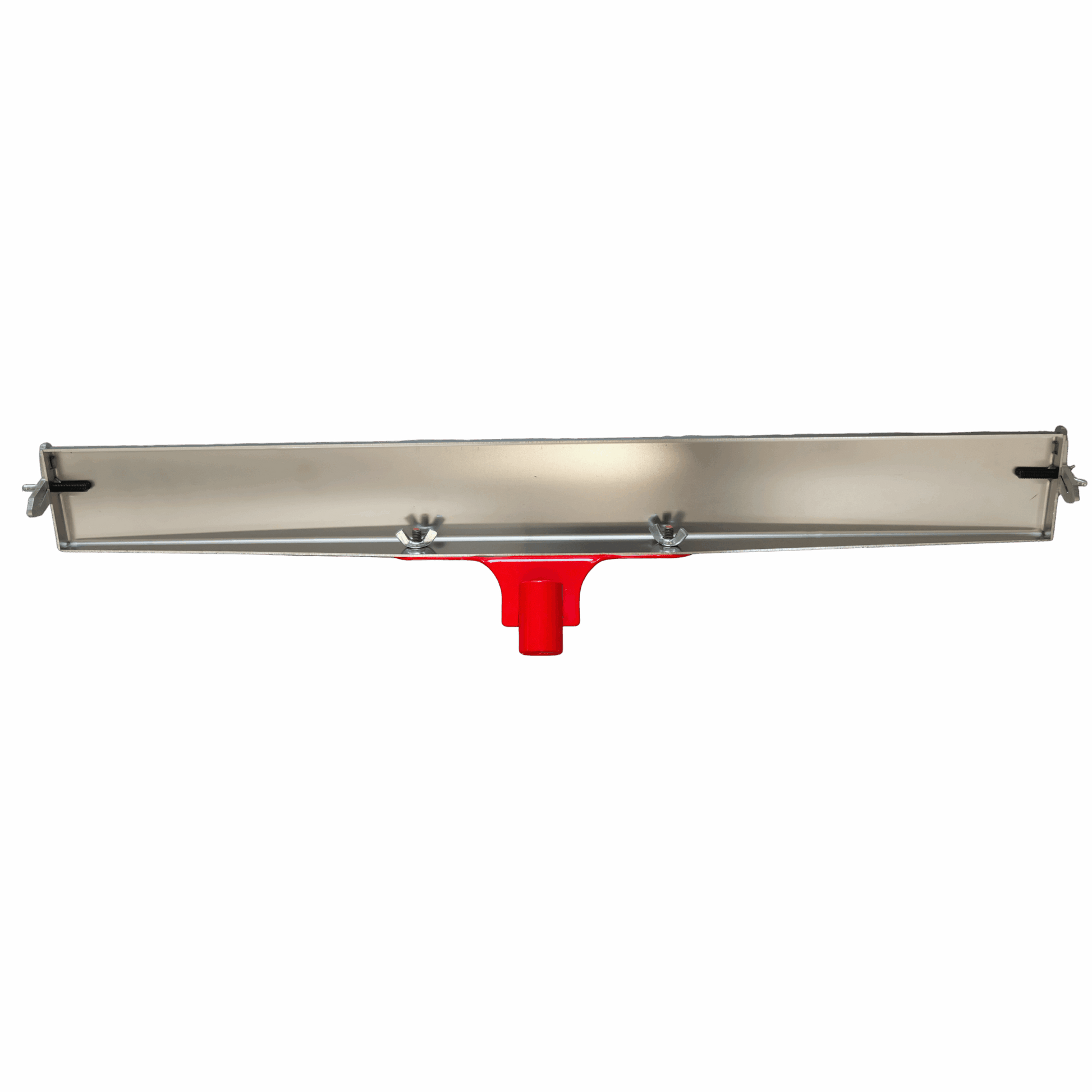

The Twin-Glide Gauge Rake gives flooring contractors a simple, durable way to control application height on medium-thickness self-levelling underlayments and industrial screeds. At each end of the 24 inch bar is a stainless-steel Glider that presents three distinct wear faces— when one end wears, just loosen the fixing screw, rotate to the next face and keep working. This extends tool life and keeps your pours consistent day after day.

Glider sets are available in six depths (1/8” (3mm) 3/16” (4mm) 13/64” (5mm) 1/4” (6mm) 5/16” (8mm) 3/8” (10mm) 9/16” (15mm) 13/16” (20mm) 1” (25mm)), so you can match the exact specification of cement-based SLUs, polymer-modified smoothing compounds, or epoxy/urethane toppings. The full-width bar distributes material smoothly and resists flexing thanks to heavy-gauge 304 stainless steel. The large and long winged bolts for locking in the Glider set make removing or replacing Gliders simple throughout operation – even when caked in product.

Key Features:

• Twin Stainless-Steel Gliders Accurate, repeatable depth control across the full 600 mm (23.6 in.) width.
• Three wear faces per Glider Rotate when one face shows wear—triple the service life with no extra parts.
• Fast depth change Swap Glider sets (3 – 25 mm / ⅛ – 1 in.) to meet job specs. No fiddling with two locking nuts or measuring out sleds.
• All-stainless construction Corrosion-proof, easy to clean, and heavy enough to help the compound self-flow.
• Standard push-fit socket Accepts most U.S. and international snap or threaded poles for ergonomic use.

Typical applications

• Cementitious self-levelling underlayments (SLU) ⅛ – 1 in. (3 – 25 mm)

• Polymer-modified smoothing screeds

• Epoxy or polyurethane industrial flooring systems

• Decorative toppings that specify a uniform build within the above range
